The TechZone – easy to control and service
The TechZone, on the right side of the sprayer, gives easy access to the isolated spray circuit, its large-dimension filters and the second pump.

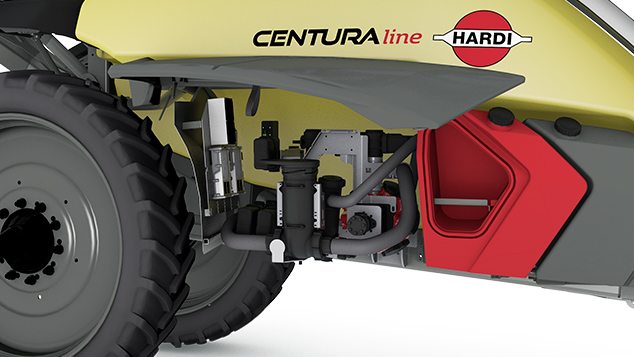

FlexCapacity pump
This extra pump boosts the combined flow capacity to 450 l/min, allowing for high application rates without impairing agitation. Similar to the main pump, it is a HARDI trademark diaphragm pump – robust and easy to service.

Large-dimension filters
- The HARDI EasyClean filter is a high-capacity suction filter.
- The HARDI CycloneFilter is a unique, self-cleaning pressure filter, providing high efficiency without limiting flow. Combined with standard 22 mm stainless steel boom lines, it ensures optimum spray distribution at high application speeds or volumes.
The WorkZone – Intuitive operation
The WorkZone on the left hand side of the sprayer provides the operator with safe control of all sprayer functions – filling, mixing, agitation and spraying.
- Comfortable, large and secure WorkZone
- FluidBox 8000 groups main sprayer functions on one screen
- TurboFiller with integrated work table
- Waterproof 40-litre SafetyLocker

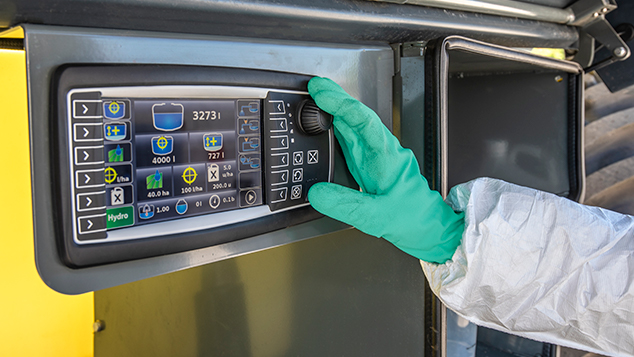

FluidBox 8000
The intelligent FluidBox 8000 gives quick and direct access to common operations on one screen, including AutoFill, AutoAgitation and AutoWash.
- Intuitive colour interface
- Simplified, integrated calculator for sprayer preparation
- On/Off and emergency stop for all functions
- Nozzle test

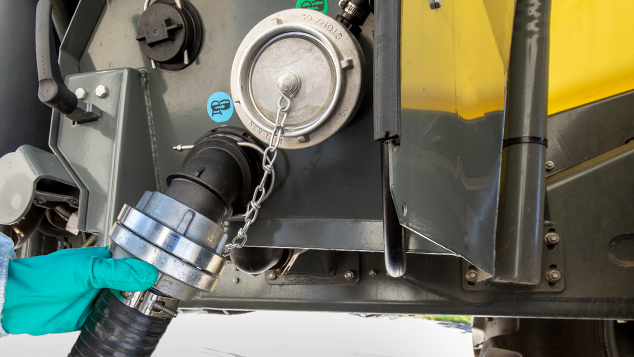

AutoFill – Fast and accurate filling
Set the volume, connect the hose – leave the rest to AutoFill, allowing the operator to carry out other tasks simultaneously.
- No overfilling – AutoFill stops at programmed volume
- Choose between maximum content or volume added
- Start/stop control at the FluidBox in the WorkZone
- Agitation is reduced automatically for maximum fill effect

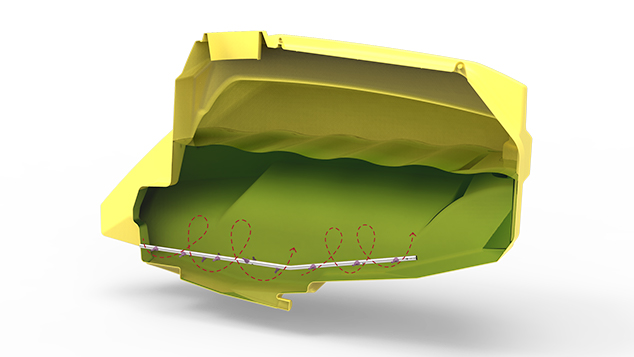

AutoAgitation – Agitation at its best
Fully automatic agitation for minimal filling time.
- Ensures even agitation as the tank empties
- Maximum agitation without foaming
- Minimal tank residues upon completion of spray job
- Automatic readouts of tank contents on terminal
- Manual override available through the FluidBox

AutoWash – Easy, accurate and safe cleaning
Reduces residues to best in class – using only 400 litres of rinsing water.
- Operated from the tractor cabin
- No contamination of operator and tractor cabin
- No pesticide cross-contamination
- Choose one of three rinse programme – the rest is automatic
- In-field washing using multiple rinse operations
- Five rotating rinse nozzles in main tank for a thorough wash

TurboFiller – Fast and efficient mixing
The shape of the hopper and its special TurboDeflector at the bottom create a cyclone effect to incorporate even the most difficult-to-mix com - pounds.
- Rapid filling and transfer into main tank
- High mixing capacity for powders and liquids
- 35 l capacity with stainless steel contents indicator
- Hopper with integrated table at work height
- Built-in rinsing system – 2 rinse nozzles and 1 external lance
