HARDI best in class with DELTA FORCE AntiYaw
10/12/2019Minimise the environmental impact by avoiding double sprayed areas with HARDI AntiYaw
New test proves that the HARDI DELTA FORCE boom is performing best in class in avoiding yaw movements.
HARDI Commander 5500 – 36 m DELTA FORCE
The purpose of this activity is to investigate the stability of the spray boom and the importance of the stability to the precision of plant protection products, with a view to elucidating possible under- / overdose during treatment.
All sprayers with 36 m boom
Speed 8 km/h; boom height: 70 cm; Boom control active
Prepared for:
Environmental Pro tection Agency
Tolderlundsvej 5
5000 Odense C
Compiled by:
Institute of Technology
Agro Food Park 15
8200 Aarhus N
Test method

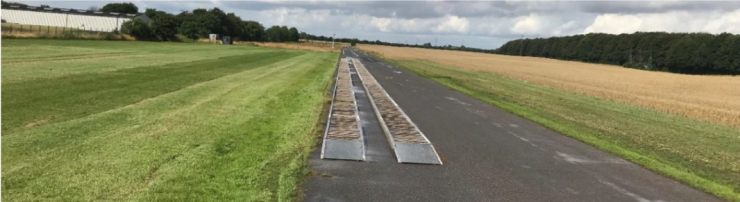

The test is carried out in accordance with ISO 14131: 2007 section 5.3 'Tests on tracks' which specifies ISO 5008 'Smoother Track' as a suitable track. ISO 5008 'Smoother Track' is laid on an asphalt area at Test Center Bygholm, Horsens, DK, and the areas around the track have been rejected immediately before the test to ensure uniform conditions for the boom height sensors.

As the test track is higher than the surrounding, a 70 cm working height is chosen for the test.
|
Horsch 6 LT |
Amazone UX6201 |
Dammann 10000 Tandem DAS |
HARDI COMMANDER 5500 DDZ |
Boom Center min. height |
67 cm |
64 (65) cm |
70 cm |
72 cm |
Boom center maximum height |
81 cm |
82 (87) cm |
87 cm |
90 cm |
Difference min / max |
15 cm |
17 (22) cm |
17 cm |
18 cm |
Boom tip maximum height |
85 cm |
84 (98) cm |
99 cm |
92 cm |
Higher than center |
4 cm |
2 (11) cm |
12 cm |
2 cm |
Tilt fluctuation SD |
7 cm |
11 (13) cm |
11 cm |
16 cm |
Peak to peak (max 3 sec) |
26 cm |
40 (71) cm |
38 cm |
74 cm |
Yaw fluctuated SD |
25 cm |
13 (17) cm |
10 cm |
13 cm |
Peak to peak (max 3 sec) |
110 cm |
59 (81) cm |
48 cm |
78 cm |
Distance between boom center and measuring point |
15,98 m |
10,44 (17,2) m |
14,8 m |
14,91 m |
SD is the standard deviation out of 12 measurements calculated to 18 m distance from the boom center. The sensors had been in different position on the boom wing. The difference between the Amazone data is due to this sensor position.
Classification
The data has a variation due to different tractor and sprayer specification. The wheels, the length of the sprayer and the position of the sensors on the boom require a classification in a range; otherwise, the measuring failure is not covered. We in HARDI use a classification scheme for some years, when we verify new boom management software on our different booms.
|
Horsch |
Amazone |
Dammann |
HARDI |
|
XXXX |
XXX |
XX |
X |
Difference min / max |
XXXX |
XXXX |
XXXX |
XXXX |
|
< 20 cm |
20 - 25 cm |
25 - 50 cm |
> 50 cm |
Boom tip higher than center |
XXX |
XXXX |
X |
XXXX |
|
< 3 cm |
3 - 6 cm |
6 - 9 cm |
> 9 cm |
Tilt fluctuation SD |
XXXX |
XXX |
XXX |
XXX |
|
< 10 cm |
10 - 20 cm |
20 - 30 cm |
> 30 cm |
Peak to peak (max 3 sec) |
XXXX |
XXX |
XXXX |
XXX |
|
< 40 cm |
40 - 80 cm |
80 - 120 cm |
> 120 cm |
Yaw fluctuated SD |
XX |
XXX |
XXX |
XXX |
|
< 10 cm |
10 - 20 cm |
20 - 30 cm |
> 30 cm |
Peak to peak (max 3 sec) |
XX |
XXX |
XXX |
XXX |
|
< 40 cm |
40 - 80 cm |
80 - 120 cm |
> 120 cm |
Conclusion
All sprayers show a good performance under these test conditions.
The height movement is not from major importance, as nozzles have a proven cross distribution by working heights from 30 – 70 cm. The risk of higher drift is given, when the nozzles are too high. For that it is interesting to look on the maximum boom tip value compared to center.
The yaw movement is influencing the length distribution here a big movement can have a large impact. In this test, the sprayers are not turning, so this negative result gets far higher when working in curves, or after turning. But already here are differences visible between different boom designs.
Download the full report from Technological Institute in Denmark
