NAVIGATOR i - The intelligent choice

i for intelligent - Welcome the new generation of NAVIGATOR sprayers

To reduce environmental impact as much as possible, the new NAVIGATOR “i” machines offer you the best intelligent spraying features – helping to increase application precision significantly and make the operation of the sprayer easier and safer. The AutoWash automated cleaning system ensures no residues are left in the liquid system or main tank, while automated spraying features like AutoNozzleControl control each nozzle individually for higher precision and faster driving speeds. The entirely new HARDI SmartCom ECU delivers faster diagnostics – making you well prepared for the future.

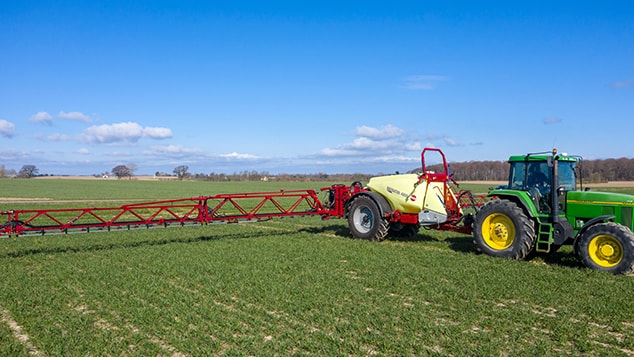

NAVIGATOR i 24-08-2020-min.jpg
The NAVIGATOR

NAVIGATOR is synonymous with high quality and design which supports functionality. These properties work to ensure value for money and ease of use. In the HARDI trailer family, NAVIGATOR offers features from mid-size to full specification solutions. The large range of high quality features makes the NAVIGATOR the obvious choice.

Concept

Demands for simple and reliable solutions, serviceability, and high capacity are universal world-wide. NAVIGATOR represents HARDI’s experience as a sprayer specialist. The proven success of NAVIGATOR sprayers since their introduction has shown the value of this position.

All intelligent

The NAVIGATOR has now been lifted to a whole new level with the introduction of the “i” version – featuring:

FluidBox has been added to the WorkZone. Easyto- operate
SmartValves put the operator in complete control of filling, agitation, spraying and cleaning.

AutoWash For an easier, faster and more efficient rinse process, we offer the automated AutoWash. The SmartValves are operated automatically from the tractor cabin so the operator can avoid coming into contact with the equipment or the sprayed crop. Three rinse programmes make cleaning easy. The process is done whilst in the field, where multiple rinse actions provide best-in-class reduction of residual chemical concentrations – using only 400 litres of clean water.make cleaning easy. The process is done whilst in the field, where multiple rinse actions provide best-in-class reduction of residual chemical concentrations – using only 400 litres of clean water.

AutoFill To ease the filling process and prevent overfilling, we offer AutoFill. The operator sets the fill volume, connects the hose and starts the fill via the FluidBox. The filling process will automatically stop when the preset volume is reached.









AutoAgitation To maximize agitation without foaming and minimise tank residues, we offer fully automated AutoAgitation. When filling, AutoAgitation ensures maximum FastFiller capacity – while a manual override is always possible from the FluidBox.

PrimeFlow PrimeFlow circulates and primes the boom before the actual spraying and is controlled by an ON/OFF motor at each nozzle body. The open/close action is instant.

SmartCom Offers the user a full ISOBUS experience, meaning easy connection to tractors and controllers. A more powerful processor offers faster processing times, for a more accurate and responsive liquid regulation system as well as the ultimate steering system. The ISOBUS system also allows you to add new features later, while fast diagnostics help avoid down-time. The built-in ability to connect to several Cloud Services means the system will have you prepared for the future.

SPECIFICATIONS
  • Tank: 3000 / 4000 / 5000 / 6000 l
  • Track: IntelliTrack, high performing and stable drawbar steering
  • Controller: HC 8600, HC 9600, ISOBUS
  • TurboFiller: Efficient handling of liquid and powder
  • Liquid system: DynamicFluid4 for precise application in all conditions
  • Axle: Fixed 1.8 / 2.0 m or adjustable 1.5-2.25 m
  • Boom: DELTA FORCE: For higher speeds and greater performance 24 to 39 m

AutoNozzleControl

Get full control of your spray job with the HARDI AutoNozzleControl automatic nozzle on/off feature. Working with the PrimeFlow system, exact control of each nozzle ensures the highest level of precision.

  • Every nozzle is controlled automatically
  • Save up to 10% of chemicals by minimizing double sprayed areas
  • Avoid crop damage due to double spraying
  • Avoid spraying in critical areas by switching off outer nozzles
  • In auto mode the sprayer works with 50 cm sections
  • Turning on and off of nozzle when turning in headland.
AutoNozzleControl-min (1).jpg

NAVIGATOR i – Features

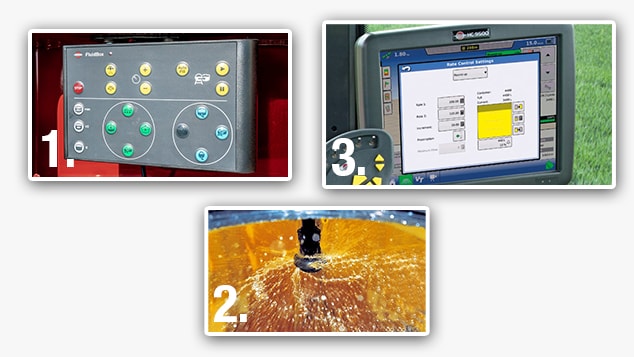

NAVIGATOR i – Features, 1-3-min.jpg

1. FluidBox – Operation of fluid system
With the NAVIGATOR “i”, an updated FluidBox is located at the WorkZone in the
front.

2. AutoWash – Ultimate cleaning process
For an easier, faster and more efficient rinse process.

3. AutoFill – Fast and accurate filling
To ease the filling process and prevent overfilling.

4. AutoAgitation – Best agitation performance
To maximize agitation without foaming and minimise tank residues.

5. AutoSelect – Fast nozzle switching
The two-nozzle AutoSelect with four different settings, allows switching between nozzles from the driver’s seat.

6. PrimeFlow – Pressure circulation
PrimeFlow circulates and primes the boom before the actual spraying.

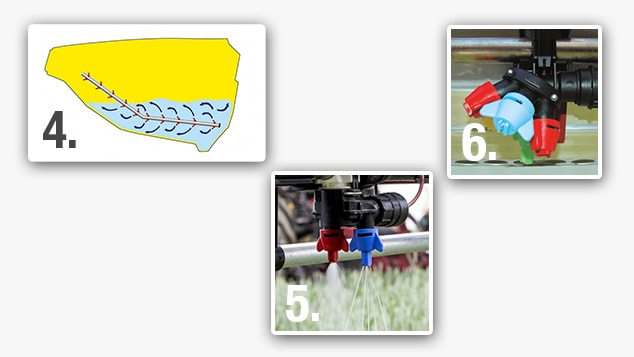

NAVIGATOR i – Features, 4-6-min.jpg

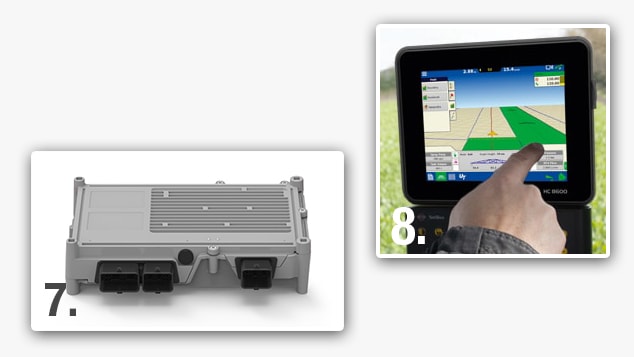

NAVIGATOR i – Features, 7-8-min.jpg

7. HARDI SmartCom – ISOBUS platform
The HARDI SmartCom offers the user a full ISOBUS experience, meaning easy connection to tractors and controllers. Fast diagnostics and connection to online Cloud Services will prepare you for the future.

8. HC 8600 and HC 9600 controllers
“Touch the future” with integrated electronics.
